CPU

Onboard Intel Core i5-7200U 2.5GHz Max 3.1GHz Dual Core Four Thread processor

Core (FSB)

100MHz

CPU Technique

14nm

L3 Cache

3MB SmartCache, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support calls on function automatically

Support Wake-On-LAN

Chipset

Intel KABYLAKE

Memory

2* SO-DIMM DDR3L Slot

Support 4GB/8GB/16GB

Dual Channel, DDR4-2133, LPDDR3-1866, DDR3L-1600

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G/1TB

HDD: 160G/320G/500G/1TB

Operating System

Windows 10/Linux

Audio

ALC897 chip, 7.1 channel sound

Intel Lynx Point-LP HDA

Network

Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC

Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN

Video

Intel HD Graphics 620(300~1GHz)

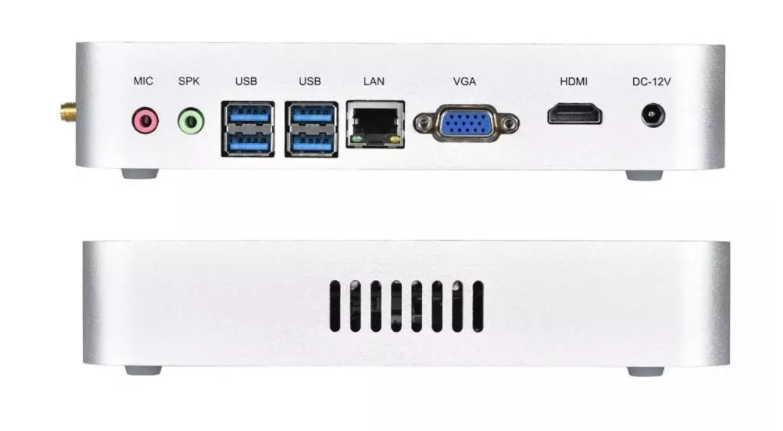

I/O port

front panel ports

1* Power indicator and switch, 4*USB3.0, 1*HDMI, 1*VGA, 1*LAN, 1*MIC, 1*SPK

Backside ports

1* SD Card, 1*USB2.0, 2*WiFi antennas

Internal ports

1*M-SATA3.0 port, support 6Gb/s

2*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI&Bluetooth)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Intel VT-x

Hyper-threading

Support Hyper-Threading

Product Dimension & Details

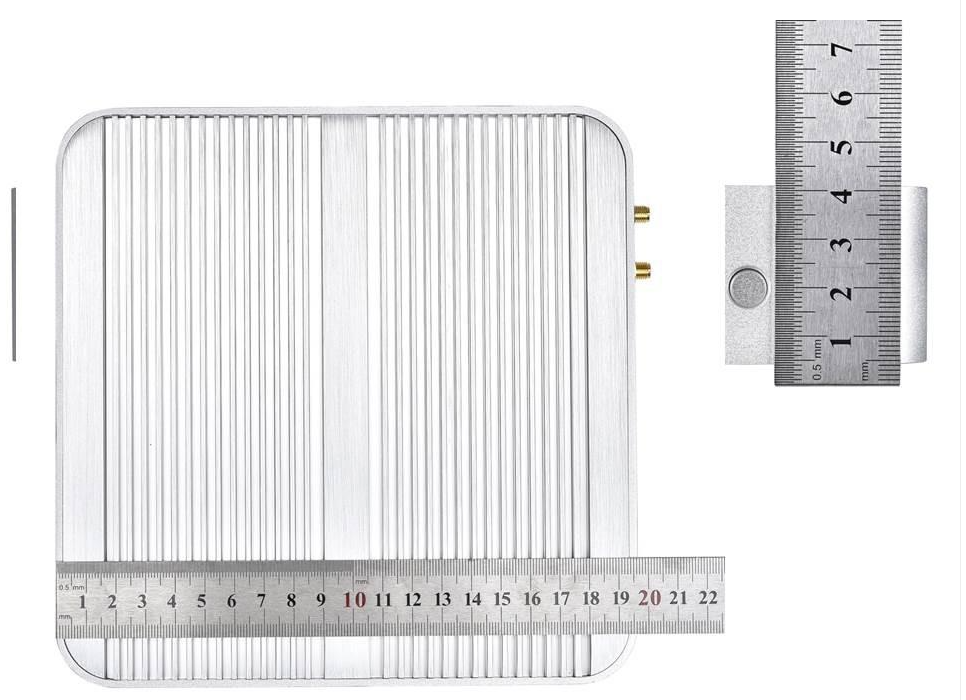

Size

197*197*39MM

Weight

2.5KG

Consumption

15W~28W

Shell

Silver color aluminum alloy

Package Content

Mini PC device, power adapter, a stand holder, a VESA mount(optional), dual WiFi antennas(optional),

a HDMI cable( as a gift), a Screw Bag, Warranty Card
